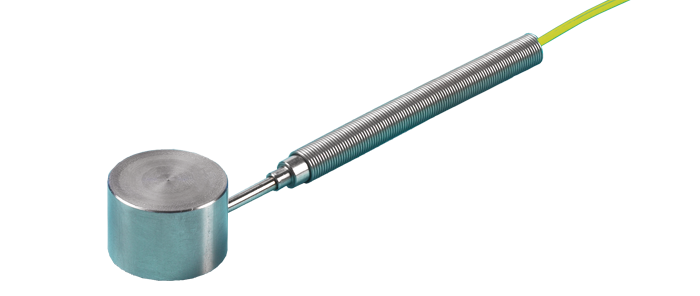

Heavy Duty Magnet Thermocouple

view larger image
An extremely powerful magnet makes this thermocouple sensor ideal for heavy duty applications where the surface temperature of ferrous materials needs to be measured. The sensor has a pull strength of 20lbs and is supplied with 72” of PVC insulated leads.
  • Surface temperature measurement of ferrous materials
  • Thermocouple types K, T, J or N
  • Insulated Junction
  • Leads: 72” PVC insulated leads
  • Operating range: 14ºF to +175ºF (-10ºC to 80ºC)
  • Pull strength: 20lbs
  • Magnet Dimensions: 1.0" dia. x 0.531" thick
The following types are available:
Heavy Duty Magnet Thermocouple
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
210-005 Heavy Duty Magnet Thermocouple Type K $188.00 $172.00 $157.00 Add
210-010 Heavy Duty Magnet Thermocouple Type J $188.00 $172.00 $157.00 Add
210-015 Heavy Duty Magnet Thermocouple Type T $188.00 $172.00 $157.00 Add
210-025 Heavy Duty Magnet Thermocouple Type N $188.00 $172.00 $157.00 Add
