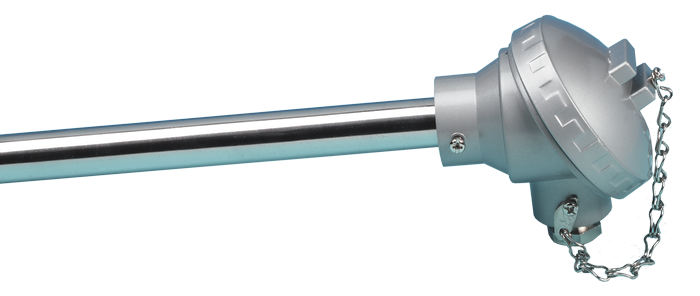

Heavy Duty Industrial Thermocouple

These sensors are available with thick wall protective sheaths in 304 or 310 Stainless Steel, Inconel 600® or Incoloy 800®. Typical temperature measurement applications include: furnaces (blast, carburizing etc.), kilns, ovens, boilers, flues, cyanide/galvanizing baths and general heat treatment applications. They are available in a variety of diameters and lengths.

Thermocouple types K, J, S or R
Sheath material: 304 Stainless Steel, 310 Stainless Steel, Inconel 600® or Incoloy 800® depending on thermocouple type selected
The maximum operating temperature of these sensors is shown in the order code boxes below
Sheath diameters: 1/2”, 5/8” or 13/16”
Terminated in an IP67 weatherproof die cast alloy head rated to 275ºF (not included in length)
4” dia Cast Iron flanges as well as compression fittings are also available

The following types are available:

Type K - 304 Stainless Steel Sheath (1850ºF)
Type K - Inconel 600® (2010ºF)
Type K - Incoloy 800® (2010ºF)
Type J - 304 Stainless Steel (1290ºF)
Type S - 310 Stainless Steel (1830ºF)
Type R - 310 Stainless Steel (1830ºF)

Type K - 304 Stainless Steel Sheath (1850ºF)

Order Code	Description	1 - 4	5 - 9	10 - 19	Buy
209-201	1/2" dia x 12" long	$159.00	$143.00	$130.00	Add
209-204	1/2" dia x 18" long	$176.00	$158.00	$143.00	Add
209-207	1/2" dia x 36" long	$209.00	$189.00	$171.00	Add
209-210	5/8" dia x 12" long	$163.00	$147.00	$133.00	Add
209-213	5/8" dia x 18" long	$178.00	$162.00	$146.00	Add
209-216	5/8" dia x 36" long	$217.00	$197.00	$179.00	Add
209-219	13/16" dia x 12" long	$167.00	$152.00	$139.00	Add
209-222	13/16" dia x 18" long	$188.00	$171.00	$154.00	Add
209-225	13/16" dia x 36" long	$243.00	$218.00	$197.00	Add
209-481	1/2" NPT St/Steel comp fitting for 1/2" sheaths	$23.50	$21.40	$19.80	Add
209-487	1/2" NPT St/Steel comp fitting for 5/8" sheaths	$24.30	$22.60	$20.50	Add
209-493	3/4" NPT St/Steel comp fitting for 13/16" sheaths	$52.50	$47.70	$43.70	Add
409-501	4" dia Adjustable Cast Iron Flange for 1/2" dia	$41.30	$37.50	$33.90	Add
409-502	4" dia Adjustable Cast Iron Flange for 5/8" dia	$41.30	$37.50	$33.90	Add
409-503	4" dia Adjustable Cast Iron Flange for 13/16" dia	$41.30	$37.50	$33.90	Add

Type K - Inconel 600® (2010ºF)

Order Code	Description	1 - 4	5 - 9	10 - 19	Buy
209-241	1/2" dia x 12" long	$161.00	$146.00	$132.00	Add
209-244	1/2" dia x 18" long	$181.00	$165.00	$150.00	Add
209-247	1/2" dia x 36" long	$227.00	$205.00	$187.00	Add
209-250	5/8" dia x 12" long	$181.00	$165.00	$150.00	Add
209-253	5/8" dia x 18" long	$212.00	$191.00	$174.00	Add
209-256	5/8" dia x 36" long	$287.00	$259.00	$235.00	Add
209-259	13/16" dia x 12" long	$225.00	$204.00	$185.00	Add
209-262	13/16" dia x 18" long	$268.00	$243.00	$219.00	Add
209-265	13/16" dia x 36" long	$466.00	$421.00	$382.00	Add
209-481	1/2" NPT St/Steel comp fitting for 1/2" sheaths	$23.50	$21.40	$19.80	Add
209-487	1/2" NPT St/Steel comp fitting for 5/8" sheaths	$24.30	$22.60	$20.50	Add
209-493	3/4" NPT St/Steel comp fitting for 13/16" sheaths	$52.50	$47.70	$43.70	Add
409-501	4" dia Adjustable Cast Iron Flange for 1/2" dia	$41.30	$37.50	$33.90	Add
409-502	4" dia Adjustable Cast Iron Flange for 5/8" dia	$41.30	$37.50	$33.90	Add
409-503	4" dia Adjustable Cast Iron Flange for 13/16" dia	$41.30	$37.50	$33.90	Add

Type K - Incoloy 800® (2010ºF)

Order Code	Description	1 - 4	5 - 9	10 - 19	Buy
209-298	13/16" dia x 12" long	$236.00	$213.00	$193.00	Add
209-301	13/16" dia x 18" long	$282.00	$254.00	$231.00	Add
209-304	13/16" dia x 36" long	$488.00	$440.00	$399.00	Add
209-492	3/4" NPT St/Steel comp fitting for 13/16" sheaths	$121.00	$110.00	$100.00	Add
409-503	4" dia Adjustable Cast Iron Flange for 13/16" dia	$41.30	$37.50	$33.90	Add

Type J - 304 Stainless Steel (1290ºF)

Order Code	Description	1 - 4	5 - 9	10 - 19	Buy
209-330	1/2" dia x 12" long	$159.00	$143.00	$130.00	Add
209-333	1/2" dia x 18" long	$176.00	$158.00	$143.00	Add
209-336	1/2" dia x 36" long	$209.00	$189.00	$171.00	Add
209-339	5/8" dia x 12" long	$163.00	$147.00	$133.00	Add
209-342	5/8" dia x 18" long	$178.00	$162.00	$146.00	Add
209-345	5/8" dia x 36" long	$217.00	$197.00	$179.00	Add
209-348	13/16" dia x 12" long	$167.00	$152.00	$139.00	Add
209-351	13/16" dia x 18" long	$188.00	$171.00	$154.00	Add
209-354	13/16" dia x 36" long	$243.00	$218.00	$197.00	Add
209-481	1/2" NPT St/Steel comp fitting for 1/2" sheaths	$23.50	$21.40	$19.80	Add
209-487	1/2" NPT St/Steel comp fitting for 5/8" sheaths	$24.30	$22.60	$20.50	Add
209-493	3/4" NPT St/Steel comp fitting for 13/16" sheaths	$52.50	$47.70	$43.70	Add
409-501	4" dia Adjustable Cast Iron Flange for 1/2" dia	$41.30	$37.50	$33.90	Add
409-502	4" dia Adjustable Cast Iron Flange for 5/8" dia	$41.30	$37.50	$33.90	Add
409-503	4" dia Adjustable Cast Iron Flange for 13/16" dia	$41.30	$37.50	$33.90	Add

Type S - 310 Stainless Steel (1830ºF)

Order Code	Description	1 - 4	5 - 9	10 - 19	Buy
209-432	1/2" dia x 12" long	$607.00	$549.00	$498.00	Add
209-435	1/2" dia x 18" long	$993.00	$897.00	$813.00	Add
209-438	1/2" dia x 36" long	$1,876.00	$1,694.00	$1,535.00	Add
209-450	13/16" dia x 12" long	$626.00	$565.00	$513.00	Add
209-453	13/16" dia x 18" long	$1,012.00	$914.00	$829.00	Add
209-456	13/16" dia x 36" long	$1,894.00	$1,710.00	$1,551.00	Add
209-481	1/2" NPT St/Steel comp fitting for 1/2" sheaths	$23.50	$21.40	$19.80	Add
209-487	3/4" NPT St/Steel comp fitting for 13/16" sheaths	$24.30	$22.60	$20.50	Add
409-501	4" dia Adjustable Cast Iron Flange for 1/2" dia	$41.30	$37.50	$33.90	Add
409-503	4" dia Adjustable Cast Iron Flange for 13/16" dia	$41.30	$37.50	$33.90	Add

Type R - 310 Stainless Steel (1830ºF)

Order Code	Description	1 - 4	5 - 9	10 - 19	Buy
209-382	1/2" dia x 12" long	$607.00	$549.00	$498.00	Add
209-385	1/2" dia x 18" long	$993.00	$897.00	$813.00	Add
209-388	1/2" dia x 36" long	$1,876.00	$1,694.00	$1,535.00	Add
209-400	13/16" dia x 12" long	$626.00	$565.00	$513.00	Add
209-403	13/16" dia x 18" long	$1,012.00	$914.00	$829.00	Add
209-406	13/16" dia x 36" long	$1,894.00	$1,710.00	$1,551.00	Add
209-481	1/2" NPT St/Steel comp fitting for 1/2" sheaths	$23.50	$21.40	$19.80	Add
209-487	3/4" NPT St/Steel comp fitting for 13/16" sheaths	$24.30	$22.60	$20.50	Add
409-501	4" dia Adjustable Cast Iron Flange for 1/2" dia	$41.30	$37.50	$33.90	Add
409-503	4" dia Adjustable Cast Iron Flange for 13/16" dia	$41.30	$37.50	$33.90	Add
