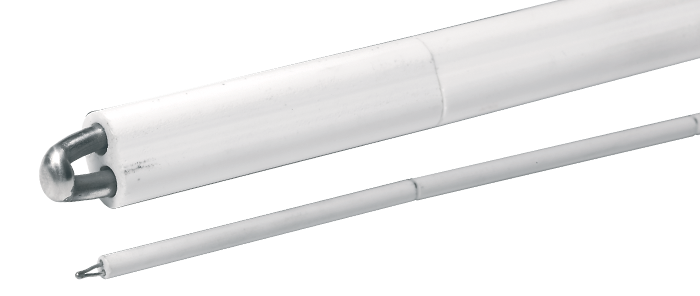

Twin Bore Ceramic Thermocouple

view larger image
These sensors are suitable for general use at high temperatures. Offered in Aluminous Porcelain for Type K and J thermocouples or Recrystallised Alumina for type S and R thermocouples. They can be cut down with insulators taken off when an exact length is required.
  • Thermocouple types K, J, S or R available
  • Ceramic sheath material: Types K and J, Aluminous Porcelain rated to 2460ºF (K) and 1382ºF (J) Types S and R, Recrystallised Alumina rated to 3090ºF Twin bore round insulators are used except in the case of 8 AWG conductor models where oval insulators are used
  • Variety of lengths and conductor diameters available
The following types are available:
Type K
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
209-007 24 AWG x 12" long $31.50 $28.80 $26.30 Add
209-010 24 AWG x 18" long $34.40 $31.50 $28.80 Add
209-013 16 AWG x 12" long $43.60 $39.70 $36.40 Add
209-016 16 AWG x 18" long $47.00 $42.80 $39.30 Add
209-019 16 AWG x 36" long $57.00 $51.00 $46.30 Add
209-022 14 AWG x 12" long $43.10 $39.40 $36.10 Add
209-025 14 AWG x 18" long $46.30 $42.30 $38.70 Add
209-028 14 AWG x 36" long $59.00 $53.00 $48.40 Add
209-031 8 AWG x 12" long $62.00 $57.00 $52.00 Add
209-034 8 AWG x 18" long $70.00 $64.00 $58.00 Add
209-037 8 AWG x 36" long $97.00 $88.00 $81.00 Add
Type J
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
209-057 24 AWG x 12" long $31.50 $28.80 $26.30 Add
209-060 24 AWG x 18" long $34.40 $31.50 $28.80 Add
209-063 16 AWG x 12" long $43.60 $39.70 $36.40 Add
209-066 16 AWG x 18" long $47.00 $42.80 $39.30 Add
209-069 16 AWG x 36" long $57.00 $51.00 $46.30 Add
209-072 14 AWG x 12" long $43.10 $39.40 $36.10 Add
209-075 14 AWG x 18" long $46.30 $42.30 $38.70 Add
209-078 14 AWG x 36" long $59.00 $53.00 $48.40 Add
209-081 8 AWG x 12" long $62.00 $57.00 $52.00 Add
209-084 8 AWG x 18" long $70.00 $64.00 $58.00 Add
209-087 8 AWG x 36" long $97.00 $88.00 $81.00 Add
Type R
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
209-101 32 AWG x 12" long $172.00 $158.00 $144.00 Add
209-104 32 AWG x 18" long $255.00 $233.00 $214.00 Add
209-107 25 AWG x 12" long $544.00 $496.00 $453.00 Add
209-110 25 AWG x 18" long $867.00 $790.00 $723.00 Add
209-113 25 AWG x 36" long $1,591.00 $1,450.00 $1,328.00 Add
Type S
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
209-131 32 AWG x 12" long $172.00 $158.00 $144.00 Add
209-134 32 AWG x 18" long $255.00 $233.00 $214.00 Add
209-137 25 AWG x 12" long $544.00 $496.00 $453.00 Add
209-140 25 AWG x 18" long $867.00 $790.00 $723.00 Add
209-143 25 AWG x 36" long $1,591.00 $1,450.00 $1,328.00 Add
