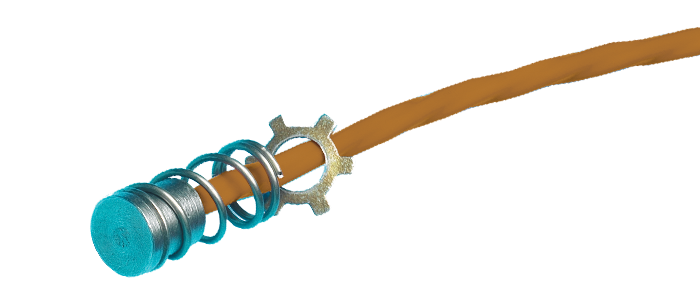

Spring Bearing Thermocouple 'Top Hat Style'
These bearing sensors are also designed for use in bearing shoes. The top hat shape allows spring loading by use of a spring and retaining ring clip. The sensor tip is inserted into the milled hole, then the retaining ring clip is pushed down to compress the spring and retain the sensor. Using these sensors will give reliable indication as to the bearing condition. This may provide an early warning of oil film breakdown and allow the machine to shutdown and avoid unnecessary damage.
- Thermocouple types K T or J available in Simplex or Duplex constructions
- Insulated sensing junction
- Supplied complete with spring and retaining ring clip
- Tip dimensions: 0.250” dia (including spring) x 0.250” long
- Maximum diameter of retaining ring clip: 0.315”
- Suited for a blind hole approx 5/16” dia
- Compressed length of spring: 0.250” approx
- Operating range: -13ºF to 482ºF (-25ºC to +250ºC)
- Extension leads: 72” of 24 AWG stranded PFA insulated wires, PFA® sheathed overall
The following types are available:
