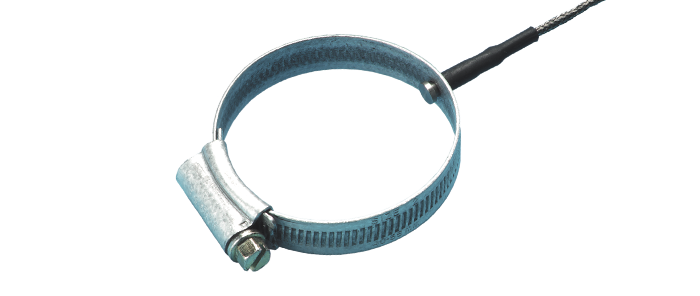

Adjustable Ring Thermocouple

view larger image
For pipe temperature measurement up to 750ºF. They are available in a number of sizes to suit your diameter of pipe. These sensors make direct contact with the pipe for maximum performance and have grounded junctions
  • Thermocouple types K, T or J available
  • Versions for pipes 1.25” to 2”, 2” to 6” or 6” to 12” offered
  • Grounded junction
  • Leads: 72” fiberglass insulated with stainless steel overbraid
  • Operating range: -150ºF to 750ºF (-100ºC to 400ºC)
The following types are available:
Adjustable Ring Thermocouple
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
201-461 Ring thermocouple Type K - 1.25" to 2" $38.60 $35.30 $32.30 Add
201-464 Ring thermocouple Type K - 2" to 6" $42.90 $39.20 $35.90 Add
201-467 Ring thermocouple Type K - 6" to 12" $47.40 $43.20 $39.50 Add
201-470 Ring thermocouple Type T - 1.25" to 2" $38.60 $35.30 $32.30 Add
201-473 Ring thermocouple Type T - 2" to 6" $42.90 $39.20 $35.90 Add
201-476 Ring thermocouple Type T - 6" to 12" $47.40 $43.20 $39.50 Add
201-479 Ring thermocouple Type J - 1.25" to 2" $38.60 $35.30 $32.30 Add
201-482 Ring thermocouple Type J - 2" to 6" $42.90 $39.20 $35.90 Add
201-485 Ring thermocouple Type J - 6" to 12" $47.40 $43.20 $39.50 Add
