Silicone Rubber Patch Thermocouple

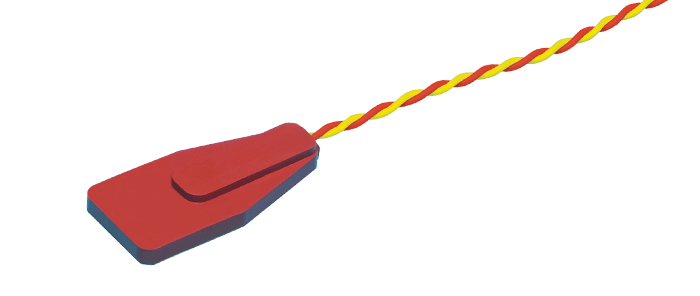

This sensor incorporates a silicon rubber patch with a thermocouple junction embedded within, attached to 72” long PFA leads. The patch is self adhesive and when placed in position enables good response times from the flush mounted thermocouple junction.
- Thermocouple types K, T, J and N available
- Rubber Patch dimensions: 1.18” x 0.55” x 0.134” maximum depth
- Sensor housing: Silicon rubber with self adhesive backing
- Operating range: -72ºF to +300ºF (-50ºC to +150ºC)
- Leads: 72” PFA insulated
The following types are available:
