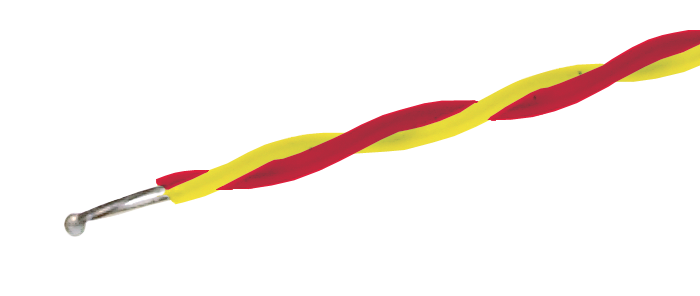

Welded Tip PFA Thermocouple

view larger image
Simple PFA insulated thermocouple for very fast response using 32 AWG conductors. Available with or without a miniature thermocouple plug attached in 72” or 180” lengths. Good for low temperature applications.
  • Thermocouple types K, T, J or N available
  • 32 AWG solid PFA insulated twisted pair leads
  • Lead length: 72” or 180”
  • Operating range: -103ºF to +482ºF (-75ºC to +250ºC)
The following types are available:
PFA T/C Without Miniature Plug
Order Code Description 1 - 19 20 - 50 51 - 100 Buy
201-301 Type K - 72" $10.50 $9.70 $8.80 Add
201-302 Type K - 180" $18.90 $17.30 $15.80 Add
201-304 Type T - 72" $10.50 $9.70 $8.80 Add
201-305 Type T - 180" $18.90 $17.30 $15.80 Add
201-307 Type J - 72" $10.50 $9.70 $8.80 Add
201-308 Type J - 180" $18.90 $17.30 $15.80 Add
201-310 Type N - 72" $10.50 $9.70 $8.80 Add
201-311 Type N - 180" $18.90 $17.30 $15.80 Add
PFA T/C With Miniature Plug
Order Code Description 1 - 19 20 - 50 51 - 100 Buy
201-321 Type K - 72" $18.70 $17.10 $15.60 Add
201-322 Type K - 180" $27.00 $24.70 $22.70 Add
201-324 Type T - 72" $18.70 $17.10 $15.60 Add
201-325 Type T - 180" $27.00 $24.70 $22.70 Add
201-327 Type J - 72" $18.70 $17.10 $15.60 Add
201-328 Type J - 180" $27.00 $24.70 $22.70 Add
201-330 Type N - 72" $18.70 $17.10 $15.60 Add
201-331 Type N - 180" $27.00 $24.70 $22.70 Add
