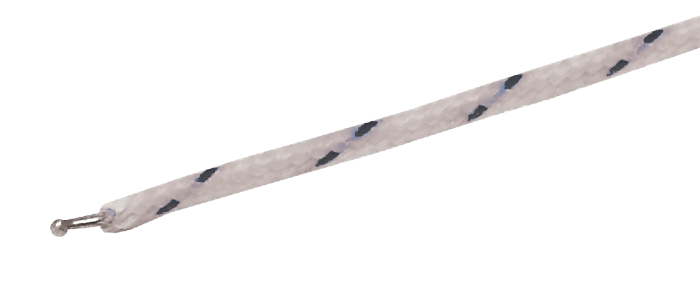

Welded Tip Fibreglass Thermocouple

view larger image
Simple fiberglass insulated thermocouple for fast response using 28 AWG conductors. Available with or without a miniature connector attached in 72” or 180” lengths. Good for temperatures up to +750ºF
  • Thermocouple types K, T, J or N available
  • 28 AWG solid fiberglass insulated, parallel construction leads
  • Lead length: 72” or 180”
  • Operating range: 14ºF to +750ºF (-10ºC to +400ºC)
The following types are available:
Fibreglass T/C Without Miniature Plug
Order Code Description 1 - 19 20 - 50 51 - 100 Buy
201-900 Type K - 72" $14.40 $13.20 $12.10 Add
201-903 Type K - 180" $25.80 $23.50 $21.60 Add
201-906 Type T - 72" $14.40 $13.20 $12.10 Add
201-909 Type T - 180" $25.80 $23.50 $21.60 Add
201-912 Type J - 72" $14.40 $13.20 $12.10 Add
201-915 Type J - 180" $25.80 $23.50 $21.60 Add
201-918 Type N - 72" $14.40 $13.20 $12.10 Add
201-921 Type N - 180" $25.80 $23.50 $21.60 Add
Fibreglass T/C With Miniature Plug
Order Code Description 1 - 19 20 - 50 51 - 100 Buy
201-941 Type K - 72" $21.40 $19.60 $18.00 Add
201-944 Type K - 180" $32.90 $30.00 $27.50 Add
201-947 Type T - 72" $21.40 $19.60 $18.00 Add
201-950 Type T - 180" $32.90 $30.00 $27.50 Add
201-953 Type J - 72" $21.40 $19.60 $18.00 Add
201-956 Type J - 180" $32.90 $30.00 $27.50 Add
201-959 Type N - 72" $21.40 $19.60 $18.00 Add
201-962 Type N - 180" $32.90 $30.00 $27.50 Add
