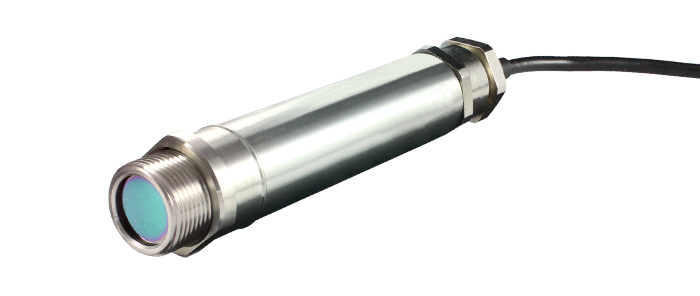

Infrared Thermometer
This infrared thermometer is ideal for a wide variety of applications where contact temperature measurement is not possible. Offered with either 2:1, 15:1 or 30:1 optical resolution depending on model, they are supplied with a 2 wire 4-20mA output over a range of 32 to 900ºF. The sensor is compatible with any instrumentation which has a 4-20mA input. All models are available with a water cooled jacket and air purge collar. An adjustable mounting bracket is also available.
- Temperature range: 32ºF to 900ºF
- Output: 4-20mA
- Accuracy: ±1%
- Response time: 240mS (90% response)
- Repeatability: 0.5%
- Resolution (Temperature): 0.25%
- Emissivity: 0.95 (fixed)
- Optical Resolution: Either 2:1, 15:1 or 30:1 depending on model selected
- Power supply required: 24 V DC to drive loop
- Dimensions: 0.71” diameter x 4.05” long stainless steel housing
- Available with optional water cooled jacket and air purge collar
- Rated to IP65
- Thread mounting: M16x1mm
- Supplied complete with 36” of wire
The following types are available:
