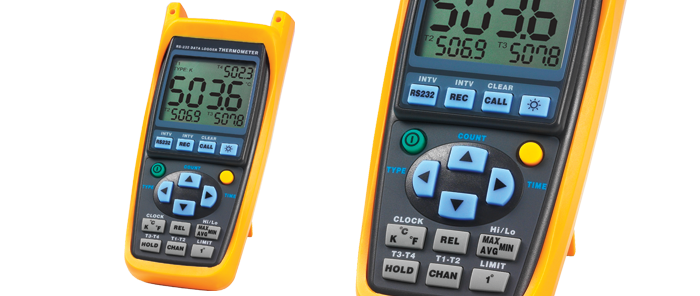

Hand Held Datalogger Indicator - Up to Four Channel with USB Output and Windows® Software
This hand held datalogging indicator will accept Types K T J N E S or R thermocouple sensors and is available in a single, dual, three or four channel version. It features a clear backlit LCD display and is housed in a hi-grade ABS case with molded rubber holster which makes it ideal for use in harsh working environments. The instrument can log up to 10000 readings per channel and via a USB output and supplied Windows® software, measurements can be made in the field and then downloaded simultaneously or later to a PC. High and Low alarms are configurable from the PC as well as being able to export the data in a variety of formats. It is possible to log each channel or the differential temperature between two channels. The interval program on the indicator incorporating a real time clock allows unsupervised measurements in variable increments. Other features include max/min/avg display and data hold function keys, timer, a ºF/ºC/K transfer key and an ergonomically designed keypad with non slip function keys.
- Multi channel input. Logging of either measurement or a differential measurement possible
- Up to 10000 readings per channel
- Windows® software supplied
- Selectable for thermocouple types K T J N E S or R
- ºF/ºC/K selectable
- Accuracy: Types K,J,E and T: ±0.1% of reading +1.4ºF (-148ºF to +2372ºF), Types S and R: ±0.1% of reading +4ºF (32ºF to 3092ºF),
Type N: ±0.1% of reading +3ºF (-148ºF to +2372ºF)
- Resolution: 0.1ºF/ºC/K
- Hand held with molded rubber holster
- Supplied with USB cable and Windows® software
- Power supply: 4 AAA batteries (supplied)
- Battery Life: 1000hrs
The following types are available:
