General Purpose Hand Held Sensor
We offer a wide range of hand held thermocouple sensors for a variety of applications.
All sensors are supplied with a 36” coiled lead when extended and a fixed miniature flat pin plug which makes them suitable for all our hand held indicators as well as most other proprietary brands of indicators. They can of course be connected to other instrumentation such as temperature controllers by using thermocouple extension cable and the appropriate connectors which can also found in this catalog.

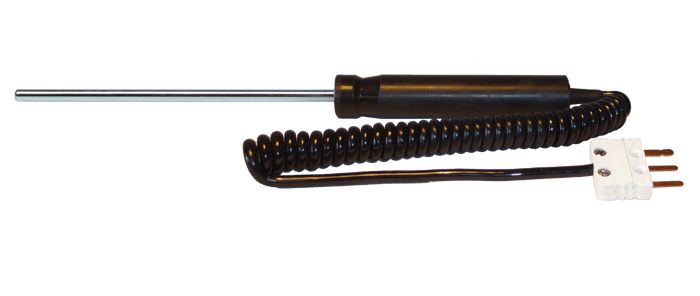

Our general purpose style is offered with a rigid sheath in either 0.125” or 0.250” diameter, 12” in length. The stem is rated to 660ºF and the handle to 275ºF. Supplied complete with a lead and three pin connector suitable for the above indicator.
The following types are available:
