General Purpose Hand Held Sensor

view larger image

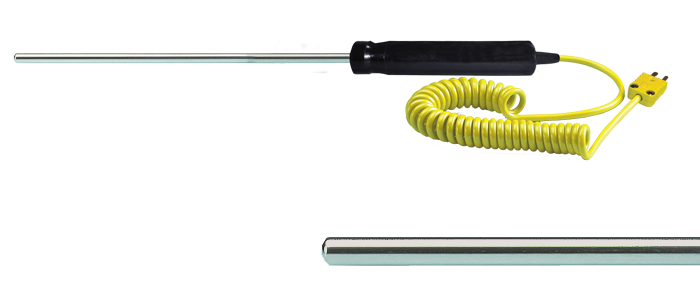

We offer a wide range of hand held thermocouple sensors for a variety of applications. All sensors are supplied with a 36” coiled lead when extended and a fixed miniature flat pin plug which makes them suitable for all our hand held indicators as well as most other proprietary brands of indicators. They can of course be connected to other instrumentation such as temperature controllers by using thermocouple extension cable and the appropriate connectors which can also found in this catalog. Our general purpose style is offered with a semi flexible mineral insulated sheath in either 0.125” or 0.250” diameter in lengths of 6”, 12” or 24”. The stem is rated to 1450ºF and the handle to 275ºF.
The following types are available:
General Purpose Sensor
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
206-700 0.125" dia x 6" $47.40 $43.20 $39.50 Add
206-703 0.125" dia x 12" $47.40 $43.20 $39.50 Add
206-706 0.125" dia x 24" $47.40 $43.20 $39.50 Add
206-709 0.250" dia x 6" $59.00 $53.00 $48.10 Add
206-712 0.250" dia x 12" $59.00 $53.00 $48.10 Add
206-715 0.250" dia x 24" $77.00 $70.00 $64.00 Add
