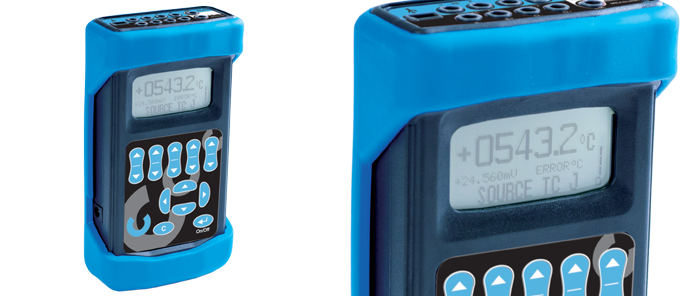

Temperature and Process Calibrator
This hand held multi-function temperature calibrator is a high-precision, easy to use device for the calibration of process control instrumentation. The unit can simultaneously measure and simulate ten types of thermocouples or seven resistance thermometers whilst capturing the calibration results. The data can be stored on the SD card supplied which is then easily downloaded to a PC via the USB port, then transferred to a spreadsheet format. The calibration has a ‘trend’ feature which is ideal for graphing temperature profiles and PID controller optimisation with a programmable timebase. All of the features above make this unit an ideal choice for field or workshop calibration. Supplied with carry case, protective rubber holster, battery, charger and test leads.
- High accuracy source and read capability
- Thermocouple, RTD and mV in / out
- Easy to read dual LCD display to simultaneously view input and output
- Moulded rubber holster
- Simple and intuitive controls make operation easy even for infrequent users
- Suitable for Platinum Resistance Thermometers, as well as Thermocouple types K, T, J, N, E, R, S, B, L, U, 0~20mA and mV
- Accuracy (source/measure): RTDs and Thermocouple types K, T, J, N, E, U, L: 0.1% FS, Types B, R & S: 1% FS, 0~20mA: 0.02% FS
- Resolution: Thermocouples: 0.1°C, RTDs: 0.01°C
- Operating Temperature: -10 to +50ºC
- Power supply: Lithium Ion battery
- Weight: 340g
- Size: 5.9" x 3" x 1.3" (HxWxD)
The following types are available:
