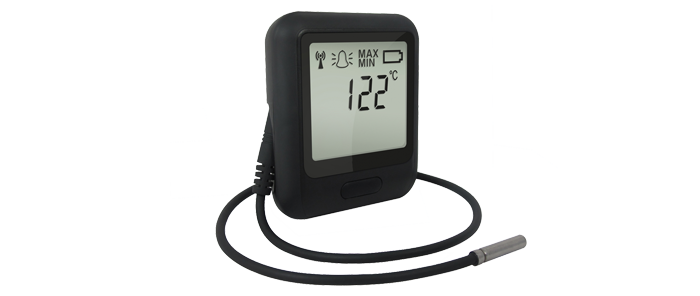

WiFi Temperature Data Logger
This data logger measures
the temperature of the
environment in which the
probe is situated. Data is
then transmitted wirelessly
via a WiFi network to a PC
and viewed via the
graphing tool or it can be
exported to Excel®. During
configuration the sensor
will search for an existing
wireless network whilst
physically connected to
the PC. It can then be placed anywhere within
the range of the network. If the sensor
temporarily loses connectivity with the
network, it will log readings until it is able to
communicate again with the PC application
(max 120 days at 10 second sample
interval). The range of the sensor can be
increased by using WiFi extenders. When
configured using typical sampling periods (e.g. once every 60 seconds) the sensor will operate
for over one year. The battery can then be recharged via a PC or USB +5V wall adapter using the
USB lead provided. The software installed on the PC will allow set-up, data logging and data
review. Set-up features will include sensor name, °C/°F, sample rate, and high/low alarms. Two
versions are available: one with an internal temperature sensor and the other with an external
temperature probe. The probe (thermistor) can be used in a wide range of temperature
applications, such as in manufacturing processes, cold storage, hot storage etc. This logger is a
low powered battery device.
- WiFi capability and integrated display
- Wireless connectivity to PC via WiFi
- Measurement range -40°C to +125°C (-40°F to +257°F)
- Accuracy: ±0.6ºC (-10°C to +70°C)
- Main unit IP55, probe IP67
- Rechargeable internal lithium polymer battery
- Data logger set-ups: Logger Name, °C/°F, Logging Rate (10s, 1m, 5m, 30m, 1hr,
6hr, 12hr), Upload Frequency, High and Low Alarms, Start Date & Start Time
The following types are available:
