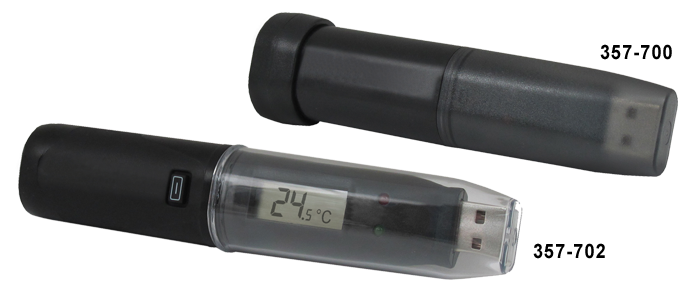

USB Datalogger - Temperature
These data loggers measure and store over 16,000 temperature readings over a range of -35 to +80°C (-31 to +176°F). The user can easily set up the logging rate and start-time, and download the stored data by plugging the module straight into a PC's USB port and running the free purpose designed software under Windows 7, Vista and XP. Data can then be graphed, printed and exported to other applications. The data logger is supplied with a long-life lithium battery. Correct functioning of the unit is indicated by a flashing red, green and orange LEDs. The data logger is protected against moisture to IP67 when the protective cap is fitted. Models with or without a high contrast display are available.
- Temperature Range: -35 to +80°C (-31 to +176°F)
- USB Interface for Set-up and Data Download
- 2 User-Programmable Alarm Thresholds
- Bright Red, Green and Orange LED Indication
- Supplied with Internal Lithium Battery and Windows Control Software
- IP67 Protection
- High contrast LCD with two and a half digit display function (357-702)
- Datalogger Set-ups: Logger Name, °C / °F, Logging Rate (10s, 1m, 5m, 30m, 1hr, 6hr, 12hr), High and Low Alarms, Start Date and Start Time
The following types are available:
