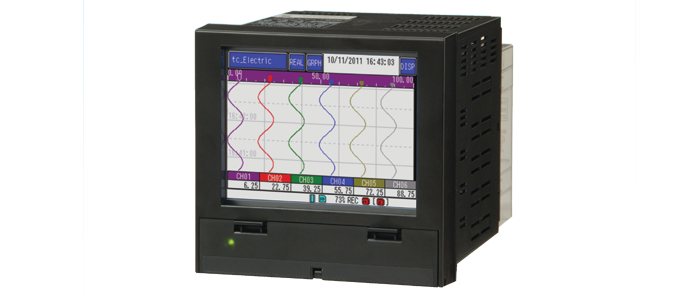

Paperless Recorder with Touch Screen

These high performance, network compatible paperless recorders incorporate a high visibility 5.7" TFT touch panel color LCD and are available with 6, 9 or 12 universal channels. They combine a high speed sampling rate of 100 ms for 12 points with an accuracy of ±0.1%. Measured data is stored either in internal flash memory or in a 2GB SD or 32GB SDHC card. Data can be monitored by a web browser on internet or intranet with FTP transfer of data files and email notification also available. The recorder can be used for various applications such as data management, research, development etc. and a wide range of monitoring options is available by utilizing the internet environment.
  • Touch Panel 5.7” TFT Screen
  • Inputs: Thermocouple Types K, T, J, N, R, S, B, L, U, C and Pt100, DC Voltage and DC Current
  • 6, 9 or 12 channels
  • PC Support software included
  • Multi point recording with high speed and accuracy
  • Easy Operating and Programming without manuals
  • LAN Network plus FTP to internet capability
  • Large capacity storage by SD/SDHC card
  • IP65 Rated

Specifications:
Measuring cycle: 100ms
Recording cycle: 1sec to 60mins (main/sub record, 100ms can be selected at sub record)
Indication accuracy: ±0.1%+1digit of input range
Burnout: Disconnection of thermocouple and RTD input; UP/DOWN selectable
Digital Filter: Range/Scale is selectable when DC voltage/current is programmed
Memory: 128MB Flash memory, CF card, 2GB SD and 32GB SDHC capacity
Recording cycle: adjustable between 1second to 60 minutes
Logging Data: Measured data; file name (group name), time of day, month and year of recording start, tag, measured data, alarm status/types Stored on Binary/CSV file
Operating Conditions: 0 to 50°C, 20 to 80% RH
Power Voltage: 85 to 264 Vac 50/60 Hz ±1%
Dimensions: 150mm x 144mm x 208mm

Display Specifications:
Display: 5.7” TFT QVGA Touch Panel colour LCD
Measured Data Display: Trend display, digital display, bar-graph display
Trend Screen: 16 colors vertical or horizontal (selectable)
Display Points: Maximum 12 points/screen
Alarm Display: Alarm activation/released history display Marker List

Alarm Specifications:
Setups: Up to 4 alarms can be programmed per channel
Alarm Types: Upper limit, lower limit, abnormal data

Ethernet Specifications:
FTP Server: Download and delete of the record file saved in SD memory. Data file can be read from the network computer with the software supplied with the recorder
HTTP Web Server: Measured-value display and alarm condition of each channel by browser
Modbus TCP: Data read in/write of setting out is possible at a Modbus TCP protocol
Email: Email notification at specified time for alarm activation and report data
The following types are available:
Paperless Recorder with Touch Screen
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
355-460 6 Channels - No Alarms $3,657.00 $3,332.00 $3,051.00 Add
355-465 6 Channels - Relay Alarms $4,189.00 $3,817.00 $3,495.00 Add
355-470 9 Channels - No Alarms $4,319.00 $3,936.00 $3,603.00 Add
355-475 9 Channels - Relay Alarms $4,852.00 $4,424.00 $4,050.00 Add
355-480 12 Channels - No Alarms $4,987.00 $4,545.00 $4,159.00 Add
355-490 Portable Carry Case $802.00 $730.00 $667.00 Add
