Thermocouple Switch Boxes

view larger image

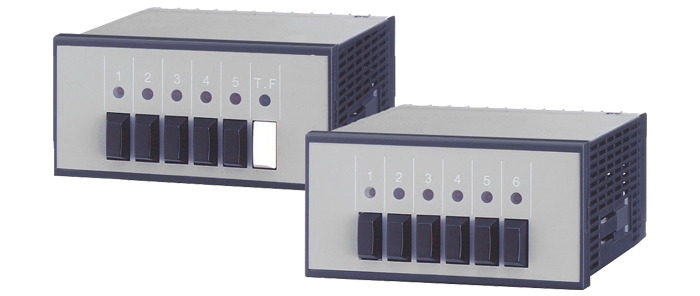

Our 1/8 DIN thermocouple switch boxes are designed to allow multiple thermocouple signals to be switched to a common display or control unit. If more than 6 signals need switching, this is easily done by using an add on unit which incorporates a transfer switch.
  • Can switch up to 6 thermocouple signals in one unit
  • Add on units switch up to a further 5 with a transfer switch (more than one add on unit can be used)
  • Button of channel in operation stays depressed to show it's in operation but separate LED status light on unit also shows it is on (if powered by independent power supply which is also offered)
  • Available for thermocouple types K, T, J or N
  • Dimensions: Horizontal version: 1.88” x 3.78” x 4” (H x W x Depth behind panel)
The following types are available:
Horizontal Mounting - 1/8 DIN
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
319-106 Type K - 6 channel $209.00 $190.00 $174.00 Add
319-108 Type K – 5 channel + transfer $209.00 $190.00 $174.00 Add
319-110 Type T - 6 channel $209.00 $190.00 $174.00 Add
319-112 Type T – 5 channel + transfer $209.00 $190.00 $174.00 Add
319-114 Type J - 6 channel $209.00 $190.00 $174.00 Add
319-116 Type J – 5 channel + transfer $209.00 $190.00 $174.00 Add
319-118 Type N - 6 channel $209.00 $190.00 $174.00 Add
319-120 Type N – 5 channel + transfer $209.00 $190.00 $174.00 Add
