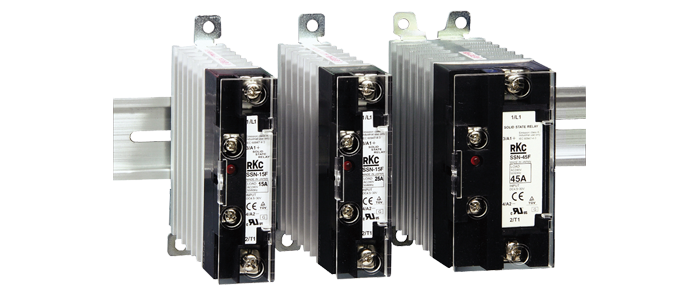

Solid State Relay - DIN Rail Mount DC control input / 60-280V AC output
These relays have a built in heat sink
within a very compact design and are
easy to use. An LED status indicator
is also provided. Ideal for use with all
of the temperature controllers shown
in this catalogue which feature an
SSR output, they utilise a control
input between 4.5 and 30V DC to
switch a circuit rated between 60 and
280V AC (47 to 63Hz).
- Input control voltage range: 4.5 to 30V DC, Response time 0.5cycle + 1msec
- Load voltage range: 60 to 280V AC (47 to 63Hz)
- Load current range: 15A AC, 25A or 45A AC (at 77°F) dependent upon model
- Zero voltage switching for resistive load
- Dielectric strength: 2500V AC for one minute
- Ambient operating range: -30°C to +40°C, 45-85% (non-condensing)
- Dimensions: 15A and 25A models 0.85” x 3.93” x 3.93” (WxHxD)
45A model 1.61” x 3.93” x 3.93” (WxHxD)
- Supplied with a plastic safety cover
The following types are available:
